FM receiver circuit DA7088T

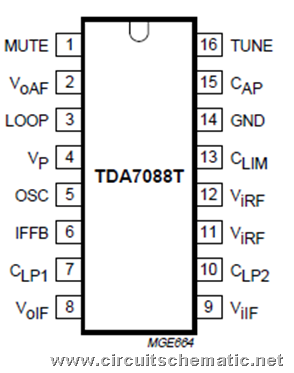

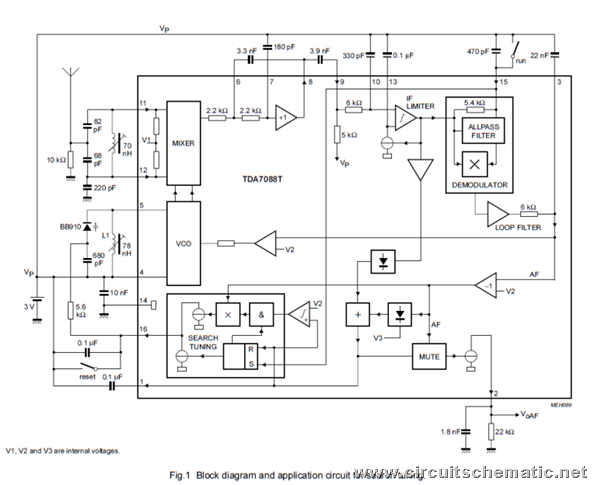

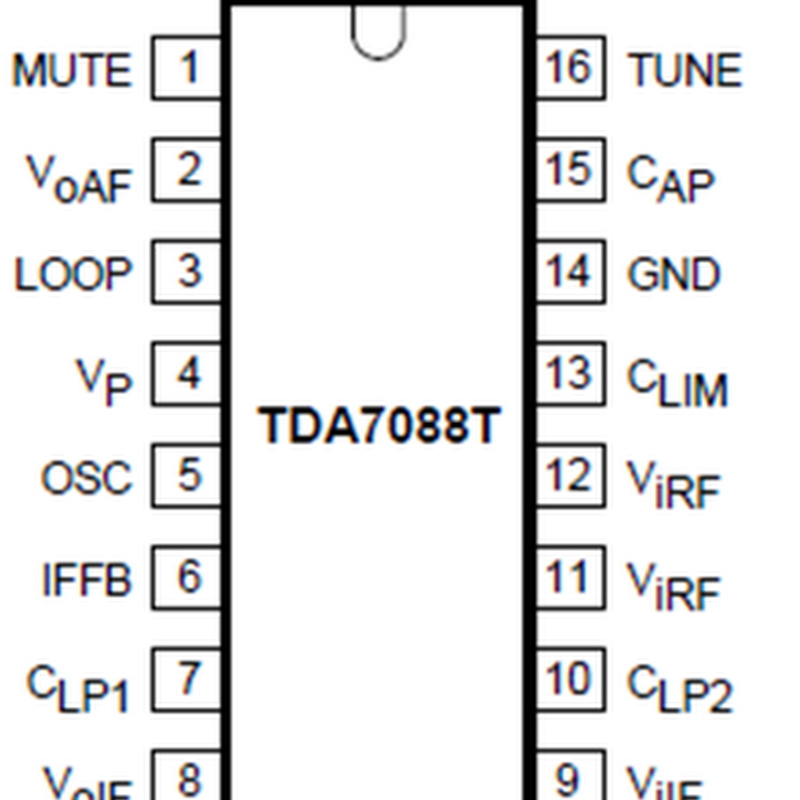

The TDA7088T is a bipolar integrated circuit for use in mono portable and pocket radios. It is used when a minimum of peripheral components (of small dimensions and low costs) is important. The circuit contains a frequency-locked-loop (FLL) system with an Intermediate Frequency (IF) of about 70 kHz. Selectivity is achieved by active RC-filters. De-tuning related to the IF and too weak input signals is suppressed by the mute circuit.
FEATURES
· Equipped with all stages of a mono receiver from antenna to audio output
· Mute circuit
· Search tuning with a single varicap diode
· Mechanical tuning with integrating AFC
· AM application supported
· Power supply polarity protection
· Power supply voltage down to 1.8 V.
APPLICATIONS
· Mechanical tuning; this is possible with or without integrating AFC circuit
· Electrical tuning; this is realized by one directional (band-up) search tuning facility, including RESET to the lower-band limit.
